Rc Ta04-R Chassis Ta04-R

Description

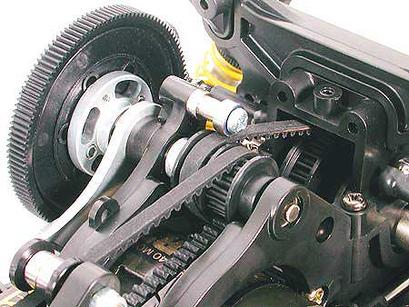

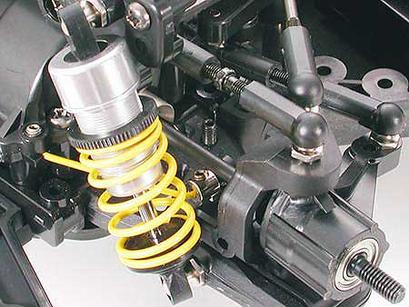

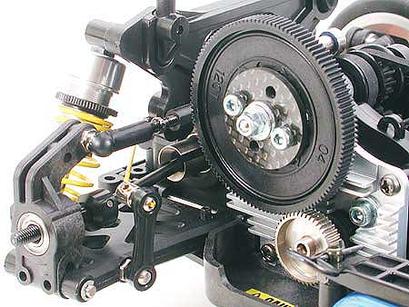

Double-deck frame of chassis features carbon reinforced resin lower deck and full carbon upper deck for increased durability. Chassis employs 2-belt 4WD with a full set of ball bearings as well as ball differential gears for maximum drive efficiency. With a full array of option parts and suspension that can be fine-tuned, this R/C chassis stays true to pure racing. (motor, battery and speed control not included)Double wishbone suspension includes clearance adjustment mechanism and super-efficient wheel dampers. F/R upper arms, steering tie rods, and torque rods feature turnbuckle shafts capable of fine adjustment. 04 module spur gear employs carbon plating to hold gear in place. 45T Pinion gear comes with 128, 120, 112T spur gears. Chassis comes with aluminum motor heat sink to facilitate effective heat escape.The TA04-R"s 2 Belt Drive 4WD system affords minimized friction for maximum racing efficiency.<UL><LI>Carbon Reinforced Resin Lower Deck<LI>TRF Dampers<LI>Aluminum Rear Bulkhead Beam<LI>Aluminum Servo Stay<LI>Urethane Bumper<LI>Universal Shaft<LI>5mm Aluminum Ball Connector (10 pcs.)<LI>Medium-Narrow Reinforced Tires Type A<LI>Medium-Narrow Soft Inner Foam (1 Pair)<LI>TA04 Ball Differential Unit<LI>TA04 Aluminum Motor Heat Sink<LI>On-Road Tuned Hard Spring Set<LI>TA04 Color Stabilizer Set (Front)<LI>TA04 Color Stabilizer Set (Rear)<LI>4mm Hard Lock-Nut & Spacer Set<LI>TA04 Aluminum Hub Set For Spur Gear<LI>TA04 Racing Hub Carrier Set<LI>TA04 Toe-In Rear Uprights<LI>TA04 Low Friction Belt (Front)<LI>TA04 Low Friction Belt (Rear)<LI>TA04 Carbon Upper Deck<LI>Full Bearing Set<LI>*F/R Upper Arm, Steering Rod, Steering Linkage, and Torque Rod all use Turnbuckle Shaft.</UL>
