Rc Pro-Module Rr Susp Set Fits 415-Evo Iv

Description

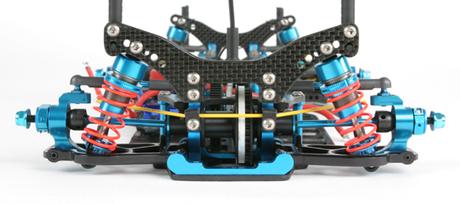

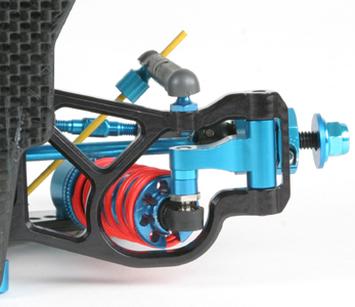

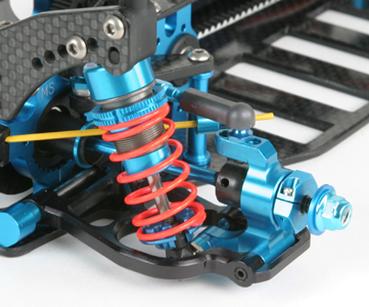

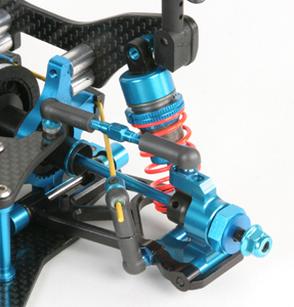

Now available from Tamiya America, Inc. is a new concept in suspension design, the Pro-Module Rear Suspension system for the 415MS and Evolution IV chassis kits. Item # 1004The Pro-Module Rear Suspension incorporates the upper link and wheel hub as part of the dampening system as apposed to a conventional design. This effectively creates a linkage system (cantilever) with no additional moving parts. The result is a reactive and exponential dampening geometry to enhance control and drivability. Both the arms and hubs are machined aluminum finished with a bold anodized plating. Hubs feature 0 deg. of toe.<li>1002 Pro-Module Suspension Arm 2pc<li>1003 Pro-Module Suspension Hub 2pc<li>N/A Spring (Red) 2pc<li>9805611 5 X 9mm Ball Connector 2pc<li>53533 3 X 16mm Titanium Screw 4pc<li>9805894 10mm Spacer 4pc<li>9804153 5.5 X 2mm Spacer 2pc<li>9804152 5.5 X 3mm Spacer 2pcItem # 53163 On-Road Tuned Spring SetNow available from Tamiya America, Inc. is a new concept in suspension design, the Pro-Module Rear Suspension system for the 415MS and Evolution IV chassis kits. Item # 1004The Pro-Module Rear Suspension incorporates the upper link and wheel hub as part of the dampening system as apposed to a conventional design. This effectively creates a linkage system (cantilever) with no additional moving parts. The result is a reactive and exponential dampening geometry to enhance control and drivability. Both the arms and hubs are machined aluminum finished with a bold anodized plating. Hubs feature 0 deg. of toe.<li>1002 Pro-Module Suspension Arm 2pc<li>1003 Pro-Module Suspension Hub 2pc<li>N/A Spring (Red) 2pc<li>9805611 5 X 9mm Ball Connector 2pc<li>53533 3 X 16mm Titanium Screw 4pc<li>9805894 10mm Spacer 4pc<li>9804153 5.5 X 2mm Spacer 2pc<li>9804152 5.5 X 3mm Spacer 2pcItem # 53163 On-Road Tuned Spring Set
